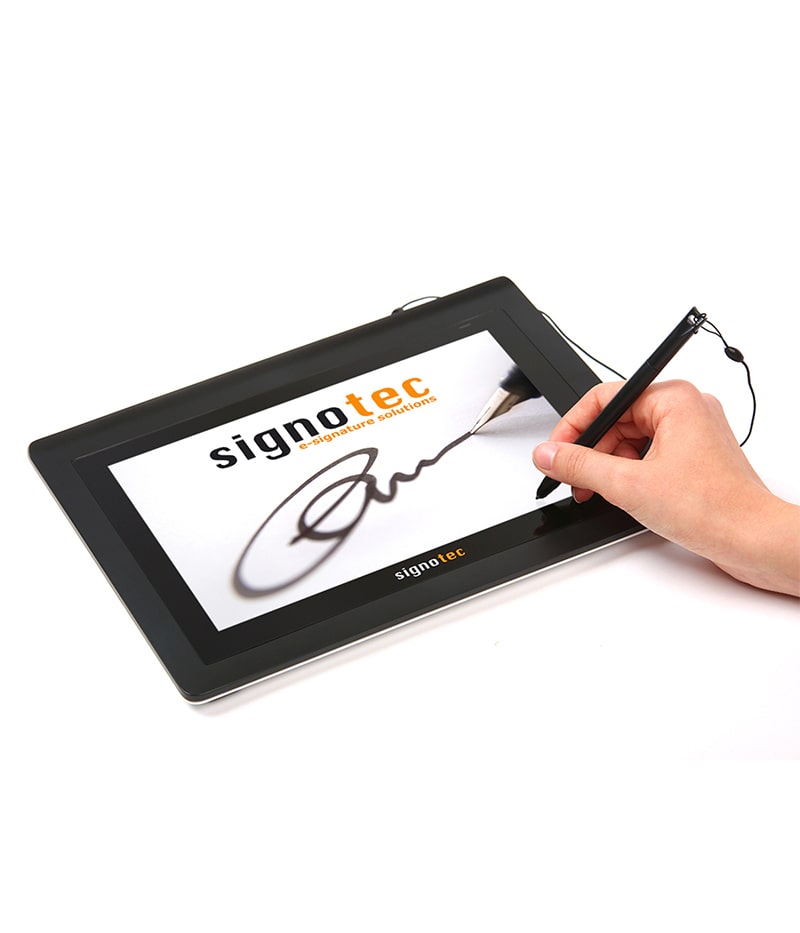

Colour LCD Signature Pad – Delta

0
Sold: 0

£406.99

Display: 25.5 cm (10,1″) Full-Colour LCD with LED-backlight
Active Signing Area: 217 x 136 mm
Dimensions (W x D x H) : 280 x 205 x 13-23 mm
Connection: USB (Y-Cable) (approx. 2.7 meters cable length)

Category:
The LCD Signature Pad “Delta” Signature Pad is designed for applications where it is important to be able to read complete documents before signing them. A4-documents are displayed in their original width. You can comfortably scroll through the document by using the pen. You can start the downward (or upward) document sliding only by brushing the screen with the pen tip. This motion will start the screen scrolling. It is the ideal solution for banks, government agencies as well as for companies where complex documents must be read before signing.   However, the technique used is unique. Unlike other 10-inch devices on the market, the signotec Delta Signature Pad is a true signature pad and not a simple monitor extension. The signotec Delta has the same SDK as all other signotec Signature Pads and is also integrated in all applications. What are the advantages of this? As an integrator and developer, you can fully interact with the pad: Download PDF documents to the pad, create your own graphics, images and texts, create buttons and capture the signature in various formats.   The signotec Delta Signature pad is equipped, naturally, with the patented security of signing PDF documents inside the pad and of encrypting the biometric signature using a public- RSA-key. Furthermore, it comes with the “Secure Mode”, which only uses a reduced amount of data for the real-time display on the PC monitor. Hence, the biometric characteristic of the signature cannot be reconstructed. Other devices on the market encrypt the data transmission, but decrypt the biometric data for the real-time display on the PC. With monitor extensions, even the mouse pointer is moved: The signature can there easily be spied out and captured. With signotec Signature Pads, you have the good feeling to get the highest security for capturing biometric signatures.   The signotec Delta pad can be placed on the desk in a space-saving manner or can be brought into an oblique position with its integrated stand. In addition, it comes with a 75 VESA- mounting fixture for mounting on third-party VESA mounts. There are two pen holders for the best ergonomics and the respective application: either horizontally above the device or inclined to the user.

ETHERNET (RJ45)
The signotec Delta signature pad can optionally be delivered with an Ethernet connection (RJ45). This connection makes it possible to integrate the pad into the companys network and to control it via IP. For example for using the device from several workstations at the same time. But also the use over a further distance can be realized in this way.

The mode can be changed from USB to Ethernet or vice versa inside the service menu of the pad.

NEW: The signotec Delta is now available with Power over Ethernet (PoE), so that no additional power supply is required for a compatible IT infrastructures.

NEW: All devices with integrated network port come with a DHCP mode for easy network integration.

Attention: The network port cannot be retrofitted.

Technical Specifications

DISPLAY
Type 25.5 cm (10,1″) Full-Colour LCD with LED-backlight
Colours 16.7 Million
Resolution 1.280 x 800 pixels
Scroll-Function Yes, graphics up to 1.280 x 37.600 pixels
SENSOR
Type ERT (Electromagnetic-Resonance-Technology)
Pen batteryless special pen with changeable pen tip
Surface particularly resistant, hardened special glass
Life expectancy approx. 30 Million Signatures
Pressure Stages 2.048
Sample Rate 500 Hz, 4D Samples (x, y, z, t)
Active Signing Area 217 x 136 mm
Resolution 10.800 x 6.900 Pixel ≙ 1.264 x 1.292 dpi
SECURITY
Encryption AES- and RSA-Encryption
Secure Mode Real-time display of the signature without usable biometrics
PDF-Signature RSA signature creation device inside the pad
Hash-Algorithms SHA-256 und SHA-512

More information can be found below in the tab “Security features”.
CONNECTION
Connection USB (Y-Cable) (approx. 2.7 meters cable length)
Power Supply USB (Y-Cable) or optional power supply
Network (TCP/IP) Yes, optional with integrated Ethernet port (RJ45)
Terminal Server / Citrix Yes, optional with Ethernet or signotec vCOM driver
Citrix Virtual Channel Yes, optional with signotec Virtual Channel driver
OTHERS
Dimensions (W x D x H) 280 x 205 x 13-23 mm
Weight approx. 650g
Status LED 2-colour status LED
Slideshow Yes, up to 16 images as self-sufficient slideshow inside the pad
Customization Change of housing color and logo print (on request)
Warranty 2 years

RSA-Security Features

The signotec pads (signotec Omega firmware 1.25, signotec Sigma 1.16) have the highest security mechanisms available. This allows a complete chain of evidence in dispute. Depending on the integration, different techniques are used:
  • PDF documents can be signed inside the pad and not in the insecure environment of the PC.
  • The biometric data of the signature can be RSA-encrypted inside the pad using a public key.
  • RSA-signature of the displayed content and signature.
  • Upon delivery, each pad has a separate and unique RSA certificate for signing.
  • Storing of custom RSA-certificates inside the pad.
  • The pad can generate a RSA certificate.
  • Supported schemes are RSA PKCS # 1 v1.5 (with or without the hash OID), PKCS # 1 v2.1
  • Certificates can be certified by a Root Authority
  • Supported hash algorithms are SHA-1, SHA-256 and SHA-512.
Weight 650 g
Dimensions 280 × 205 × 13-23 mm
